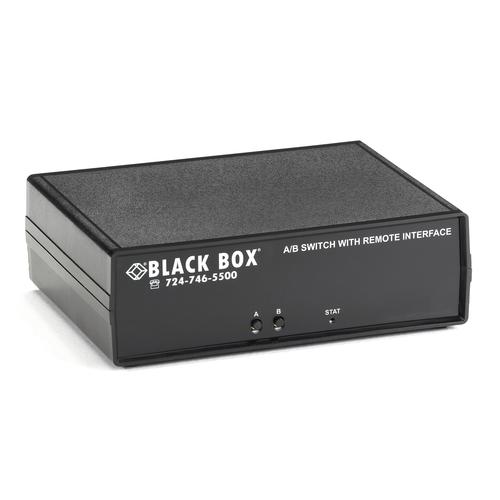

CAT6 A/B Switch - Latching RJ45 Remote Control, Dry Contact
Description

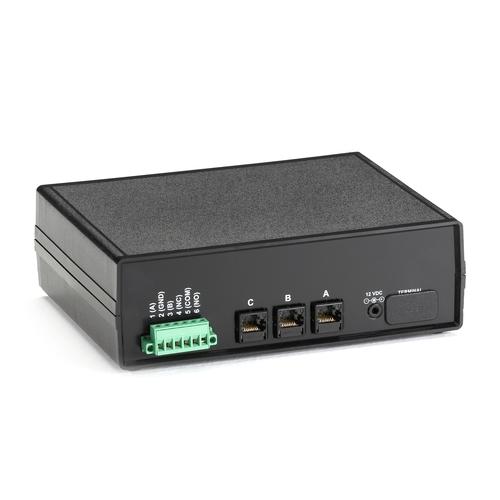

A 6 position terminal strip on the rear of the unit provides remote control capability and accepts external dry contact closures as inputs for remote A/B switching. Durable and reliable. Tested to 1,000,000 cycles
Manual control of the switch port supported through A/B push button on the front.
Can be switched remotely via dry contact as well. FCC YES
Approvals Yes
Data Rate 10/100/1000 and 10G Ethernet
Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDC
Switching Speed Typical: 5 msec; Maximum: 10 msec
Connectors A/B switch ports: (3) RJ-45; Remote control/status port: (1) 6-position terminal block; Power: (1) 2.1 x 5.5-mm power input
Dimensions 2.5"H x 6.25"W x 8.1"D (6.4 x 15.9 x 0.6 cm)
Weight 4 lb. (1.8 kg) Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Gbps.; Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.; The connection state will be maintained if power fails or is removed.; Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.; Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.; If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch.; Garantie: 1 an Double Diamond™ Garantie (par défaut);
Manual control of the switch port supported through A/B push button on the front.
Can be switched remotely via dry contact as well. FCC YES
Approvals Yes
Data Rate 10/100/1000 and 10G Ethernet
Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDC
Switching Speed Typical: 5 msec; Maximum: 10 msec
Connectors A/B switch ports: (3) RJ-45; Remote control/status port: (1) 6-position terminal block; Power: (1) 2.1 x 5.5-mm power input
Dimensions 2.5"H x 6.25"W x 8.1"D (6.4 x 15.9 x 0.6 cm)
Weight 4 lb. (1.8 kg) Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Gbps.; Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.; The connection state will be maintained if power fails or is removed.; Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.; Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.; If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch.; Garantie: 1 an Double Diamond™ Garantie (par défaut);
