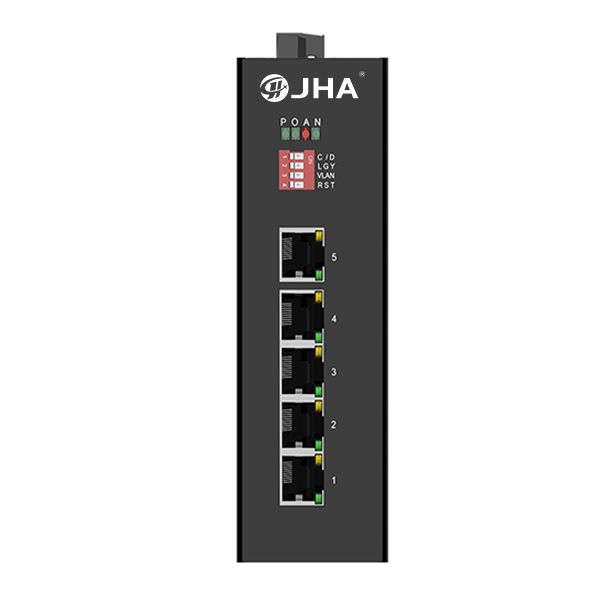

Commutateurs - switch - JHA - 5 ports 10/100/1000TX PoE/PoE+ - JAI-IG05P
Obtenir un devis / prix
Prix et détails sur demande
Shenzhen JAI Technology Co., Ltd
Echanger avec le vendeur
Description
Caractéristiques principales :
♦ 5 ports non géré Industrial PoE Switch : 4 ports 10/100/1000Base-T(X) IEEE802.3af/à PoE/PoE+ et 1 port 10/100/1000Base-T(X) Ethernet
♦ Conformité aux normes : IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
♦ Puissance : IEEE802.3af max 15,4W | IEEE802.3at max 30W
♦ Conception robuste : Boîtier en alliage d'aluminium classé IP40
♦ Protection : Protection ESD 15kV, protection contre les surtensions 8kV
♦ Plage de température opérationnelle : -40 à 85°C
♦ Installation : Montage sur rail DIN
Présentation :
Le JAI-IG05P est un switch industriel PoE non géré, plug-and-play. Il dispose de 5 ports Ethernet 10/100/1000Base-T(X), dont 4 prennent en charge la fonction Power over Ethernet (PoE) (IEEE802.3af/at). Il est classé comme un équipement de source d'alimentation (PSE), permettant une alimentation centralisée jusqu'à 30W par port, réduisant ainsi les besoins en câblage supplémentaire.
Ce switch répond aux normes CE, FCC et RoHS, et adopte une conception industrielle standard avec un boîtier robuste, une protection IP40 et une compatibilité avec une alimentation DC48-58V. Il offre une solution fiable et économique pour les réseaux Ethernet industriels.
Spécifications :
Protocole et norme :
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Performances de commutation :
- Taux de transfert : 7.44Mpps
- Bande passante : 10Gbps
- Taille de la table MAC : 8K
- Temps de retard : <3μs
Port Ethernet :
- 10/100/1000Base-T(X), contrôle automatique de la vitesse, auto-adaptation MDI/MDI-X
PoE :
- Pin-out : 1/2(+), 3/6(-)
- Puissance max : IEEE802.3af 15,4W, IEEE802.3at 30W
Indicateurs LED :
- Alimentation : P1, P2
- Port : LINK/ACT
Source de courant :
- Entrée : DC48-58V
- Consommation : <3W pleine charge
- Protection : surcharge, inversion de polarité, redondance
Structure mécanique :
- Boîtier : protection IP40, alliage d'aluminium
- Dimensions : 143 x 104 x 48mm
- Poids : 500g
- Installation : rail DIN, mural
Environnement d'exploitation :
- Température : -40 à 85°C
- Humidité : 5%-95% sans condensation
Certifications :
- CE, FCC, RoHS
MTBF :
> 100.000 heures
Garantie :
5 ans
Informations sur la commande :
♦ 5 ports non géré Industrial PoE Switch : 4 ports 10/100/1000Base-T(X) IEEE802.3af/à PoE/PoE+ et 1 port 10/100/1000Base-T(X) Ethernet
♦ Conformité aux normes : IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
♦ Puissance : IEEE802.3af max 15,4W | IEEE802.3at max 30W
♦ Conception robuste : Boîtier en alliage d'aluminium classé IP40
♦ Protection : Protection ESD 15kV, protection contre les surtensions 8kV
♦ Plage de température opérationnelle : -40 à 85°C
♦ Installation : Montage sur rail DIN
Présentation :
Le JAI-IG05P est un switch industriel PoE non géré, plug-and-play. Il dispose de 5 ports Ethernet 10/100/1000Base-T(X), dont 4 prennent en charge la fonction Power over Ethernet (PoE) (IEEE802.3af/at). Il est classé comme un équipement de source d'alimentation (PSE), permettant une alimentation centralisée jusqu'à 30W par port, réduisant ainsi les besoins en câblage supplémentaire.
Ce switch répond aux normes CE, FCC et RoHS, et adopte une conception industrielle standard avec un boîtier robuste, une protection IP40 et une compatibilité avec une alimentation DC48-58V. Il offre une solution fiable et économique pour les réseaux Ethernet industriels.
Spécifications :
Protocole et norme :
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Performances de commutation :
- Taux de transfert : 7.44Mpps
- Bande passante : 10Gbps
- Taille de la table MAC : 8K
- Temps de retard : <3μs
Port Ethernet :
- 10/100/1000Base-T(X), contrôle automatique de la vitesse, auto-adaptation MDI/MDI-X
PoE :
- Pin-out : 1/2(+), 3/6(-)
- Puissance max : IEEE802.3af 15,4W, IEEE802.3at 30W
Indicateurs LED :
- Alimentation : P1, P2
- Port : LINK/ACT
Source de courant :
- Entrée : DC48-58V
- Consommation : <3W pleine charge
- Protection : surcharge, inversion de polarité, redondance
Structure mécanique :
- Boîtier : protection IP40, alliage d'aluminium
- Dimensions : 143 x 104 x 48mm
- Poids : 500g
- Installation : rail DIN, mural
Environnement d'exploitation :
- Température : -40 à 85°C
- Humidité : 5%-95% sans condensation
Certifications :
- CE, FCC, RoHS
MTBF :
> 100.000 heures
Garantie :
5 ans
Informations sur la commande :
Modèle | Description |
---|---|
JAI-IG05P | Unmanaged Industrial PoE Switch, 4 10/100/1000Base-T(X) PoE/PoE+ et 1 10/100/1000Base-T(X), montage DIN, DC48-58V, température -40 à 85°C |
