Serveur de ports série durci

For easy remote monitoring and control of RS-232, -422, or -485 devices over a LAN or WAN Enables you to monitor a serial industrial device from your office.Configure a device, troubleshoot, upgrade firmware, and more.Rugged design for operation in a wide temperature range.NEMA TS-2 rated for use in transportation applications.Offers direct IP, virtual COM port, or paired modes of operation.Features a DB9 port and terminal block for serial connections.Equipped with a 10-/100-Mbps port for LAN/WAN connectivity.Built-in Web server for browser-based management.Includes easy-to-use configuration software.Boasts high throughput with low latency.Slim IP30 enclosure saves on DIN rail space.
Communicate easily with an RS-232, RS-422, or RS-485 serial device via your LAN or WAN with the rugged and compact 1-Port Hardened Serial Server from Black Box.

It's just what you need to improve productivity and cut down on the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location.

Eliminate visits to a distant site just to make a minor change to a configuration. You can do all this from the comfort of your office using an Ethernet LAN or WAN connection, or even from home via a standard Web connection.

A simple-to-install, user-friendly Web configuration software application enables programming through a browser connection. No time-consuming setup is required.

Set it up to operate in one of three modes:

In Direct IP Mode, you use TCP/IP or UDP/IP to communicate directly with the serial device.In Virtual COM Mode, you can communicate with the device via your network just as if the device was connected to a physical COM port.In Paired Mode, mUL®tiple serial devices can communicate with one another using network tunneling (more than one 1-Port Hardened Serial Server is required).
The Hardened Serial Server has a standard DB9 serial port and a removable terminal block for the RS-232, RS-422, or RS-485 device connection, and an autodetecting 10BASE-T/100BASE-TX port for a CAT5 connection to your Ethernet network.

Plus, for reliable operation, the serial server offers a heartbeat connection, which detects any TCP communication failures and sends out signals every five seconds until the system is reconnected. Approvals -
LES421A/LES422A: CE, UL® Class 1 Division 2, NEMA TS-2 rated
LES424A: CE, NEMA TS-2 rated, IEC 61000-6-2 EMC, IEC 60068-2-27 (shock), IEC 600068-2-6 (vibration)
Data Rate - 230.4 Kbps, maximum
Indicators -
LES421A/LES422A: (3) LEDs: (1) Ready, (1) Serial Port, (1) Ethernet Link
LES424A: (10) LEDs: (1) Power, (1) Ready (serial server ready), (4) P1 (port status for each port), (2) Speed status and (2) Link status for each RJ-45 port
User Controls - (1) mode switch for resetting unit, entering console mode, resetting to factory defaults
Web Management OS Compatibility - Windows® 2000, Windows XP (32-/64-bit), Windows 2003 Server (32-/64-bit), Windows Vista (32-/64-bit), Windows 2008 Server (32-/64-bit), Windows 7 (32-/64-bit)
Connectors-
LES421A
Ethernet: (1) RJ-45 (10BASE-T/100BASE-TX);
Power: (1) removable terminal block
Serial: (1) DB9 M or (1) removable terminal block

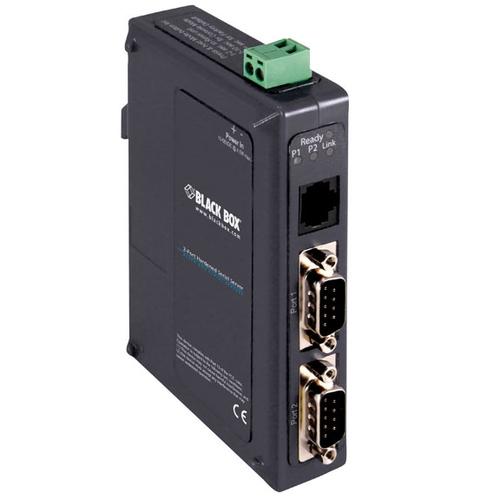

LES422A
Ethernet: (1) RJ-45 (10BASE-T/100BASE-TX);
Power: (1) removable terminal block
Serial: (2) DB9 M

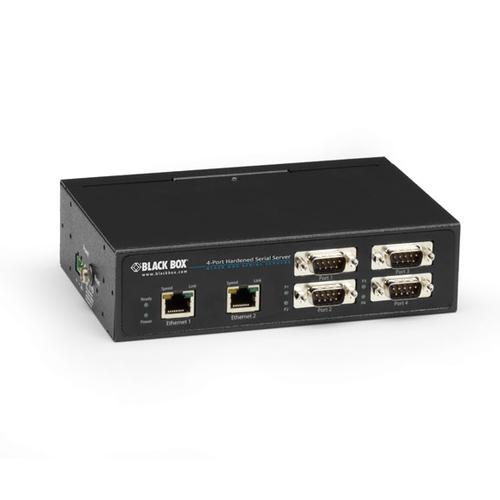

LES424A
Ethernet: (1) RJ-45 (10BASE-T/100BASE-TX), (1) RJ-45 (passthrough);
Power: (1) removable terminal block;
Serial: (4) DB9 M
Operating Temperature - -40 to 80° C (-40 to +176° F)
Power -
LES421A/LES422A
From a separately available power supply: 10-48 VDC (58 VDC max.) on a removable terminal block; Consumption: 4 W (maximum)
LES424A:
From a separately available power supply: 10-58 VDC supplied on terminal block or locking barrel plug; Consumption: 6 W (maximum)
Dimensions -
LES421A/LES422A: 3H x 8.1W x 11.9D cm (1.2"H x 3.2"W x 4.7"D)
LES424A: 4.6H x 17.1W x 12.2D cm (1.8"H x 6.75"W x 4.4"D)
Weight -
LES421A/LES422A: 0.1 kg (0.3 lb.) Access a single serial device over your Ethernet network. Software selectable for RS-232, RS-422, or RS-485.; Software selectable for RS-232, RS-422, or RS-485.; Operating Temperature -40 to +176° F (-40 to 80° C).; Autosensing 10-/100-Mbps Ethernet port.; Completely manageable through any Web browser.; Easily integrates a serial device into your Ethernet network.; Garantie: 5 ans Double Diamond™ Garantie (par défaut);
