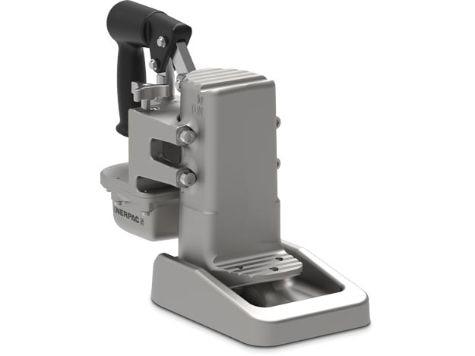

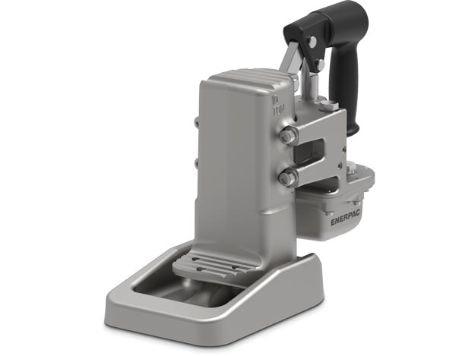

TJ105LS, 10 Ton, 101,6 mm Stroke, POW'R-CLAW Hydraulic Track Jack

Capacité
89 kN
Course
101,6 mm
Course maximum d'effort de poignée
40,8 kilogramme
Volume/Stroke
11,08 cm3
Travel/Stroke
5,1 mm
Poids
16,3 kg
Features
Exclusive overload protection from load shifts
Solid cast base provides more surface contact area, and a large grooved toe provides stable jacking
Inverted hard chrome piston design keeps water and dirt out, extending the life of the jack
Low handle effort allows one-man operation for lifting heavy loads
Anti-kickback design reduces risk of injury to operator if load is inadvertently released
All models can lift from toe or cap, ideal for spreading and jacking applications
Ideal for tough lifting applications; such as frogs, turn-outs, diamonds and concrete tie sections
Inverted Design keeps water and dirt out of the jack, increasing performance and life cycle. Allows lifting from toe or cap.
Model TJ105Ls and TJ109Ls feature a pistol-grip handle for balanced carrying and fast setup
Dimensions
Hauteur minimale Toe A
50,8 mm
(2")
Maximum Height Toe A
152,4 mm
(6")
Minimum Height Cap B
235 mm
(9.25")
Maximum Height Cap B
336,5 mm
(13.25")
Base Width C
152,4 mm
(6.00")
Base Length D
241,3 mm
(9.50")
