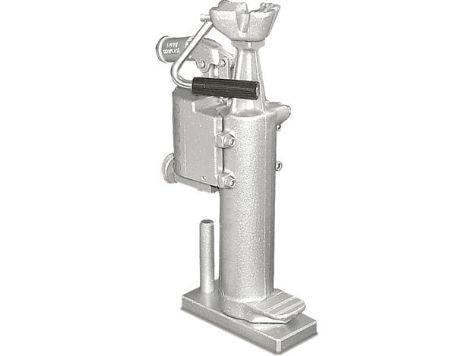

TJ109B, 10 Ton, 228,6 mm Stroke, POW'R-CLAW Hydraulic Track Jack

Capacité
89 kN
Course
228,6 mm
Course maximum d'effort de poignée
36,3 kilogramme
Volume/Stroke
11,08 cm3
Travel/Stroke
5,1 mm
Poids
29 kg
Features
Exclusive overload protection from load shifts
Solid cast base provides more surface contact area, and a large grooved toe provides stable jacking
Inverted hard chrome piston design keeps water and dirt out, extending the life of the jack
Low handle effort allows one-man operation for lifting heavy loads
Anti-kickback design reduces risk of injury to operator if load is inadvertently released
All models can lift from toe or cap, ideal for spreading and jacking applications
Ideal for tough lifting applications; such as frogs, turn-outs, diamonds and concrete tie sections
Inverted Design keeps water and dirt out of the jack, increasing performance and life cycle. Allows lifting from toe or cap.
The TJ109B Bridge and Trestle Jack easily fits between double set ties. The short lever bar and low handle effort greatly reduce the risks associated with jacking from bridges and trestles. Swivel load cap allows the use of chain.
Dimensions
Hauteur minimale Toe A
58,4 mm
(2.3")
Maximum Height Toe A
287,0 mm
(11.3")
Minimum Height Cap B
525,8 mm
(20.7")
Maximum Height Cap B
754,4 mm
(29.7")
Base Width C
95,3 mm
(3.75")
Base Length D
228,6 mm
(9.00")
